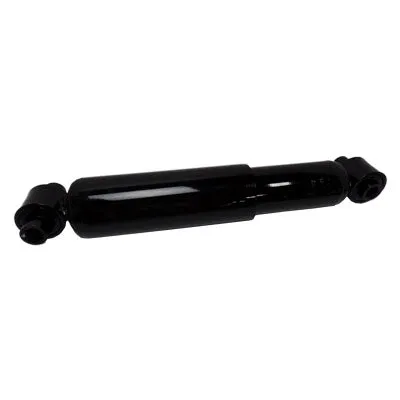

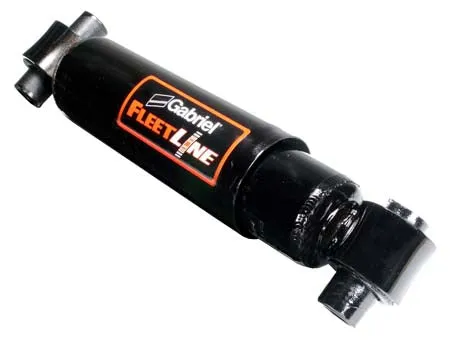

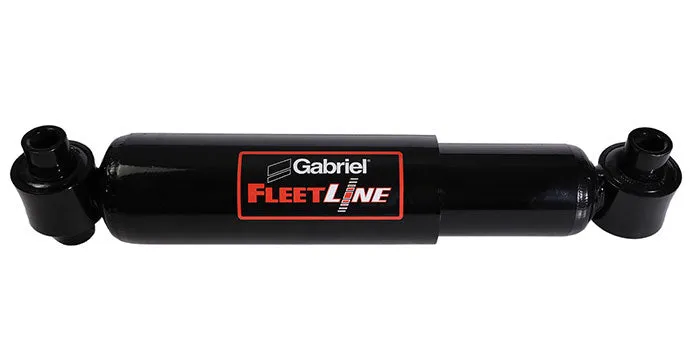

Gabriel 85724 FleetLine Heavy Duty Shock Absorber

• Class 6-8 trucks, buses and trailers
• 360 degree arc welded end mounts protect against end mount breakage
• Hydraulic rebound stop prevents impact damage to the shock and vehicle mounting components
• Welded closure for maximum tensile strength
• Multi-lip piston rod seal provides backup seal protection
• Fit type: Vehicle Specific

     Mounting Information

• Upper Mount Code:	ES158
  Upper Mount Kit  (QTY):	Not Req'd.
  Lower Mount Code:	ES159
  Lower Mount Kit  (QTY):	n/a
  External Diameter Illustration:	D

  Specifications

  Product Line:
  Extended Length:	22.81 in.	579.37 mm.
  Collapsed Length:	14.51 in.	368.55 mm.
  Stroke:	8.3 in.	210.82 mm.
  Bore:	1-5/8 in.
  Dust Tube:	YES
  Recoil Cutoff:	YES
  Rebound:	1235 lb.
  Compression:	454 lb.
